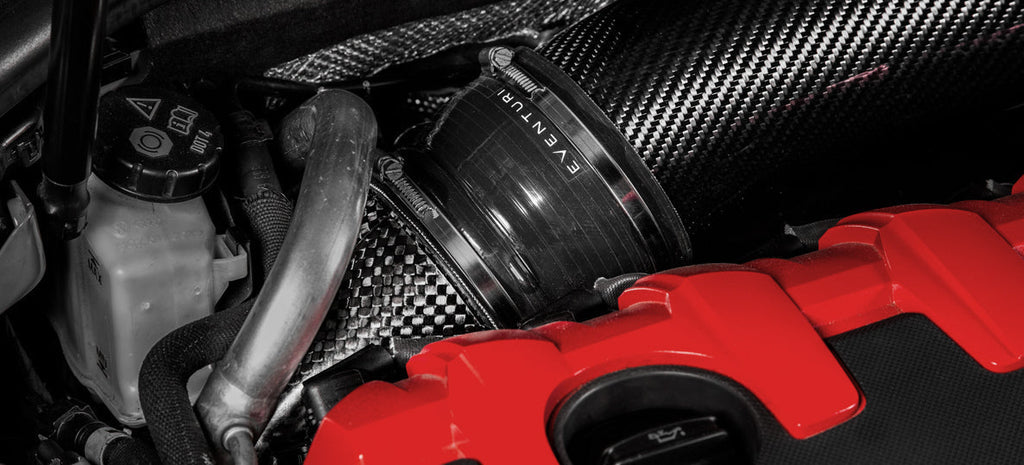

Stand out with this incredible Eventuri Carbon Fiber Turbo Inlet for all Audi TTRS 8S. Years: 2016 - Present
Performance Gain (RS3 with Hybrid Turbo): 14-20hp, 30-35ft-lb
Flow Rate increase at 24″ H2O: 42% increase over stock (Using Stock Flange)
Fitment for RS3 8V Gen 2, 8Y RS3, F3 RSQ3 and TTRS 8S Left and Right-hand drive. Finished in raw carbon – no clear coat.
Optional Turbo flanges are available for popular hybrid turbos.
- Stock Turbo Flange
- TTE700/625 Turbo Flange
- SRM GTX Turbo Flange

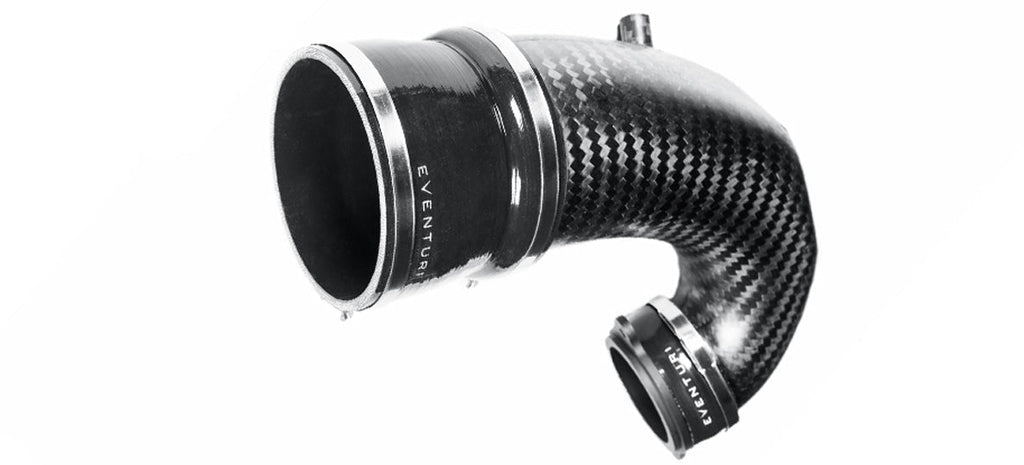

Presenting a World First – an all-carbon RS3/TTRS turbo inlet elbow. We have invested months of intense R&D in developing an inlet which leaves no room for compromise. VOLUME – FLOW QUALITY – TEMPERATURE is the 3 main design criteria which we sought to meet.

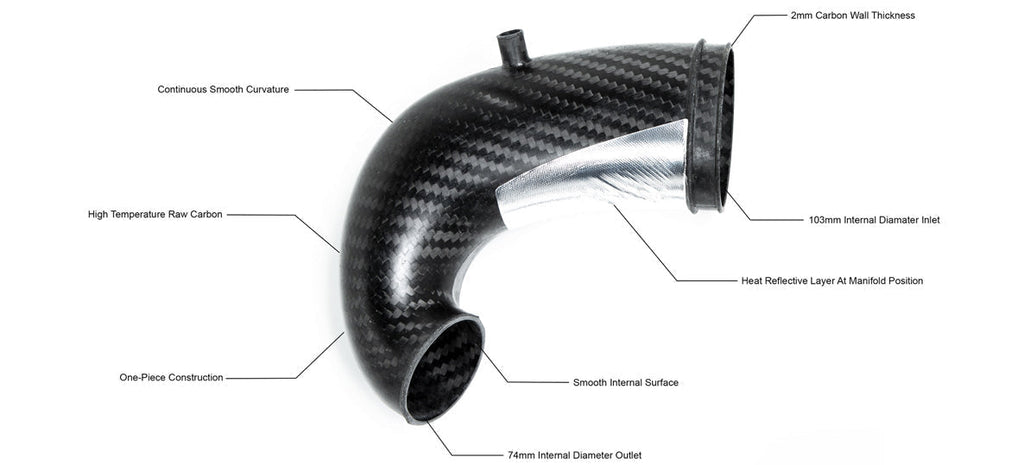

1) VOLUME: Inlet Diameters – Eventuri 103mm: Stock 72mm. Outlet Diameters – Eventuri 74mm: Stock 56.4mm. With significantly larger internal diameter sizes, the Eventuri elbow encapsulates a much larger internal volume which de-restricts the flow path to the turbo.

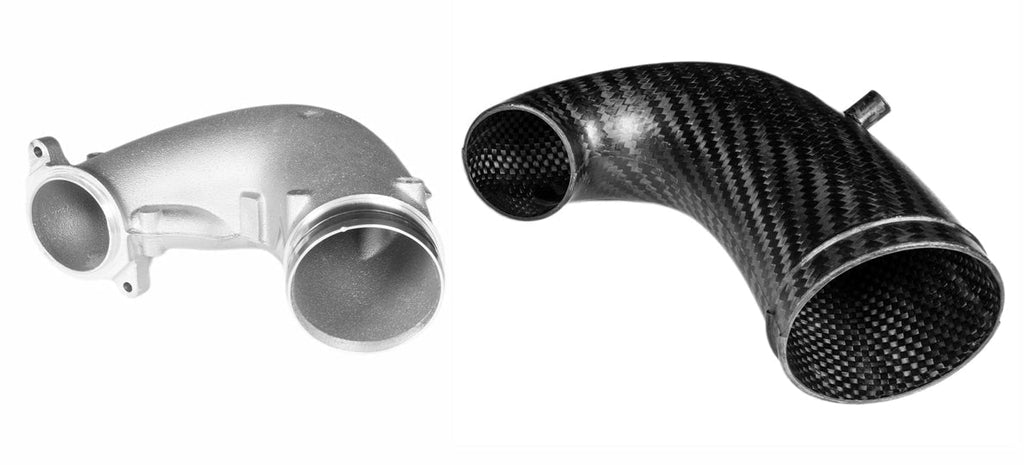

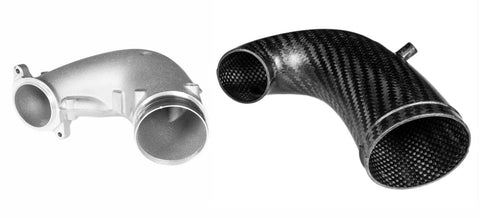

2) FLOW QUALITY: Having just a large internal volume is no good unless the flow path also allows for smooth airflow to the turbo. By using high-temperature Prepreg Carbon Fiber we have managed to achieve a smooth internal surface. In contrast, the stock and other aftermarket elbows are all made from cast aluminium which ends up with a rough internal surface. This coupled with the smooth curvature of the elbow results in a flow path which minimises turbulence.

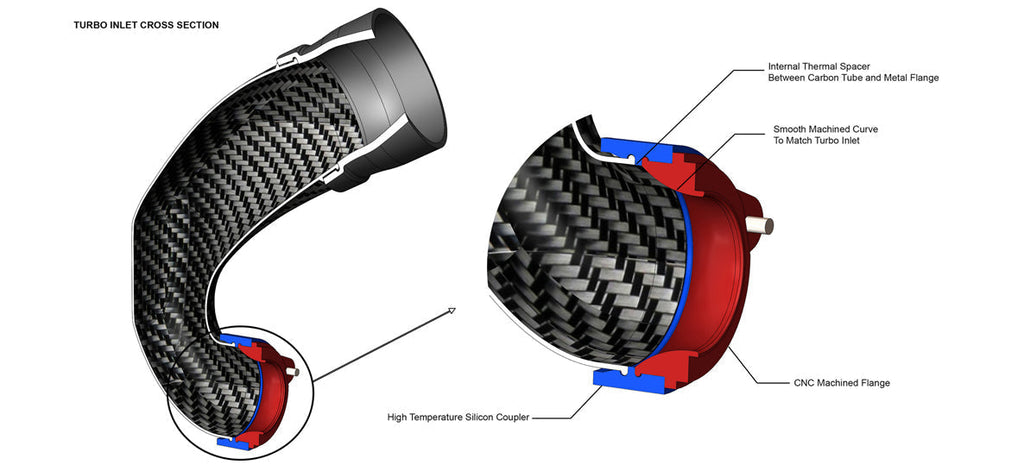

3) TEMPERATURE: The last criteria was to minimise the conduction of heat into the airflow. The stock inlet is directly connected to the turbo and so immediately conducts heat as the turbo spools. Our system uses a machined flange which connects to the turbo and then a silicon coupler with an integrated thermal spacer to keep the carbon elbow from having direct contact with the turbo. This barrier coupled with the low through-thickness thermal conductivity of carbon fibre results in less heat being transferred to the airflow.

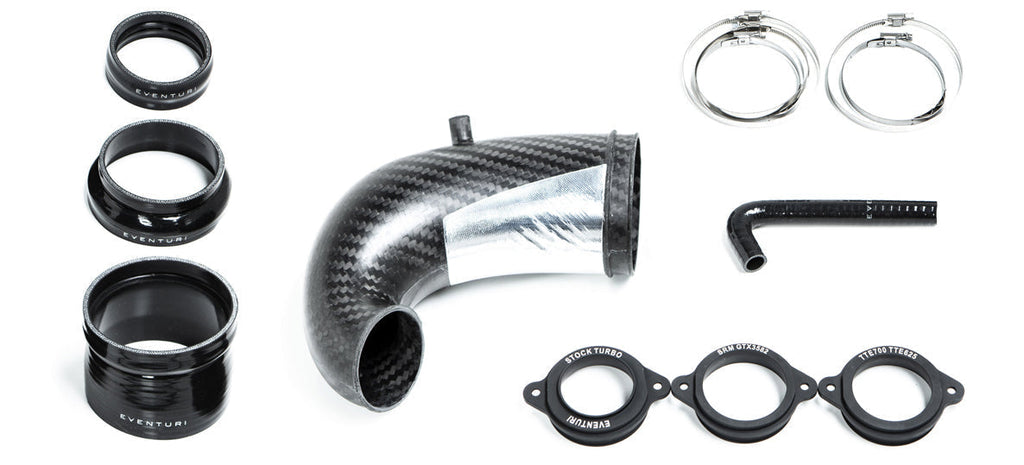

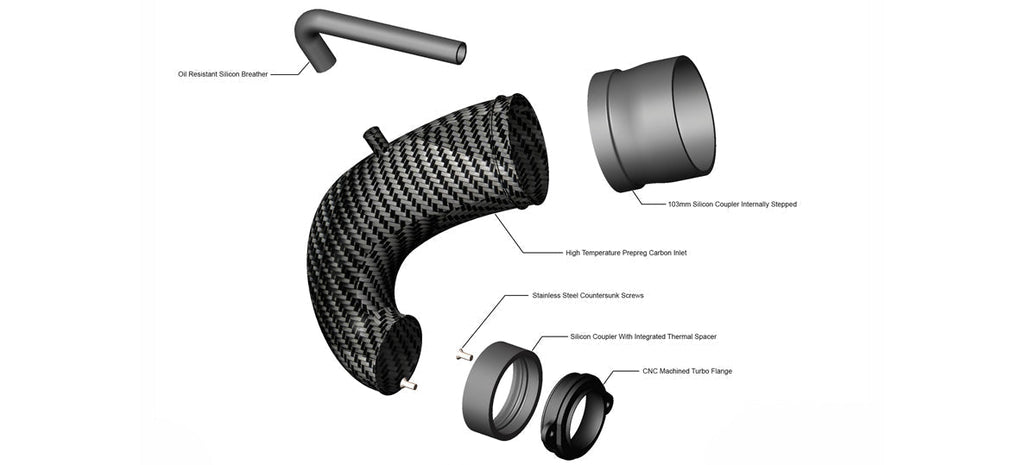

- High-Temperature Carbon Inlet Elbow - RHD and LHD Specific
- CNC Machined Turbo Flanges - optional choices
- Silicon Couplers With Oil Resistant Lining
- Marine Grade Stainless Steel Hose Clamps
